ROLLS MX410 Field Audio Sound Mixer for video production

Description:

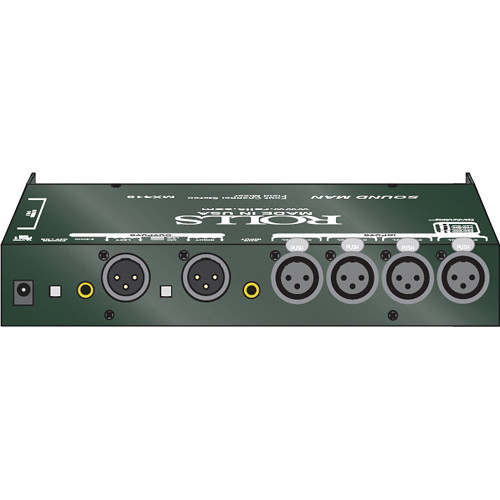

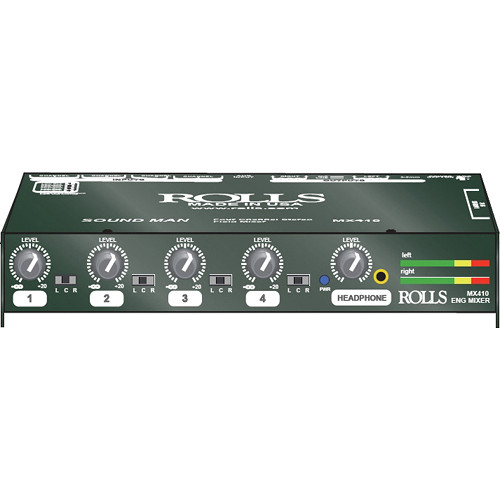

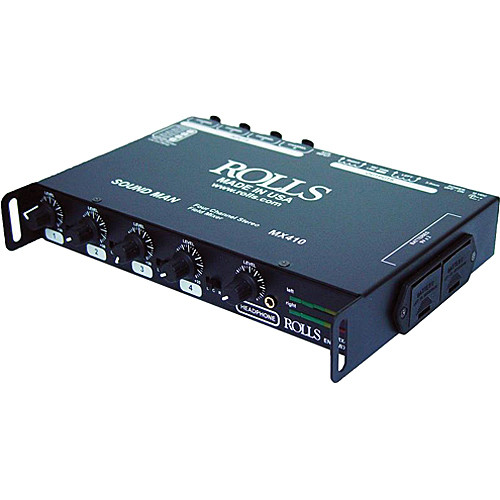

The MX410 from Rolls is a professional-quality 4-channel microphone mixer. It has a robust metal construction, making it ideal for use in the field. The mixer features 4 balanced XLR inputs, each with switchable phantom power and an independent level control. A pair of transformer-balanced mic/line switchable XLR outputs are provided for connection to a recorder, speakers, or other devices.

The mixer also offers a 3.5mm headphone jack with an independent level control for convenient monitoring. Power can be supplied with a pair of 9V batteries, or the included external power supply.

Robust metal construction, ideal for professional field use

4 balanced XLR inputs, each with switchable phantom power and an independent level control

2 transformer-balanced mic/line switchable XLR outputs

3.5mm headphone jack with an independent level control for convenient monitoring

Powered by a pair of 9V batteries, or the included external power supply

Features:

  • Inputs 4 x Balanced XLR Inputs
  • Outputs 2 x Transformer-Balanced XLR Outputs
  • 1 x 3.5mm Headphone Output
  • Impedance 600 Ohms, Balanced
  • 10 kOhms, Aux
  • Gain +55dB, Max
  • Hum & Noise -90dB Typical
  • Frequency Response 20Hz - 20kHz
  • Metering LED Meters
  • Phantom Power +18VDC, Switchable
  • Operating Temperature Not Specified by Manufacturer
  • Power 12VDC, < 200mA
  • Dimensions (WxDxH) 9 x 6.75 x 1.5" (229 x 171 x 38mm)
  • Weight 2.45 lbs (1.1kg)
  • Packaging Info
  • Package Weight 3.9 lb
  • Box Dimensions (LxWxH) 13.9 x 8.7 x 4.1"
