Hall Research Balun XGA to UTP Multiport Sender

Description:

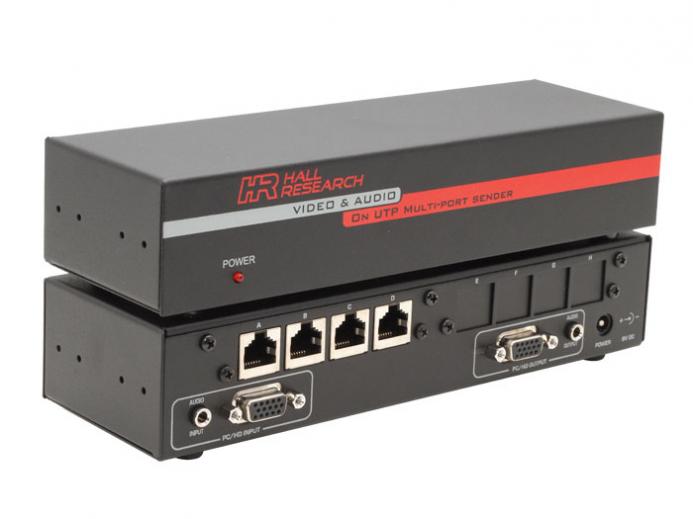

The Model UVA-24 is a UTP (Unshielded Twisted Pair) VGA video splitter (sender) with audio. The UVA series works in conjunction with URA receivers.

Made in the USA.

Features:

• Support for local monitor at transmitter
• 4 Cat5 outputs
• Transmit video and audio on one cable
• Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
• Amplifies the signal for clean and crisp transmission
• Differential signaling eliminates ground loops and noise
• Handles resolutions up to 1920x1440 at 60Hz
• Rugged, Reliable, Compact size
• Drive standard Cat5 cables to 1,000 feet
• Resolution: Up to 1920x1440 non-interlaced at 60Hz
• Standards: VGA through UXGA, RGBS or RGB
• Video Types: VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr

•
•
