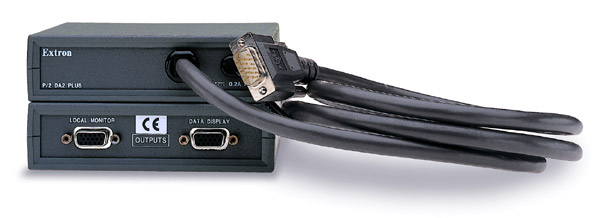

Extron P/2 DA2 Plus 1 X 2 VGA DA Distribution Amp


One VGA HD 15 Pin input 2 outputs Video Distribution amplifier


  • Input: One male 15-pin HD connector
  • Outputs: Two female 15-pin HD connectors
  • 270 MHz (-3dB) RGB video bandwidth, fully loaded
  • Compatible with all VGA-QXGA monitors, projectors and LCD panels
  • Both outputs are individually buffered
  • Routes all video card ID bits to local monitor output to allow for automatic resolution selection by DDC1 and DDC2 plug and play cards and projectors
  • External universal power supply attached
  • Inputs: Number/signal types:1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs. Connectors:(1) 15-pin HD male cable (built-in). Nominal level:0.7 Vp-p for RGB
  • Minimum/maximum levels: Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain. Impedance:75 ohms
  • Horiz
  • Outputs:
  • Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs output
  • 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs local monitor output/loop-through (ID bits are passed through)
  • Connectors (2) 15-pin HD female
  • Nominal level 0.7 Vp-p for RGB
