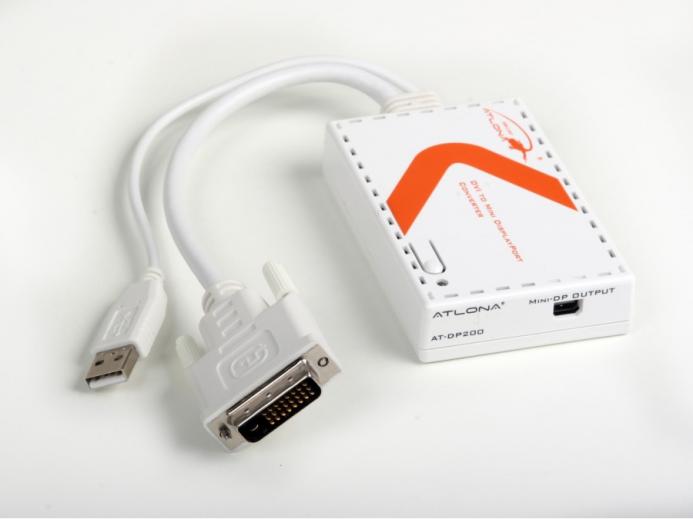

DVI to mini Display port converter Altona AT-DP200

Description:

The Atlona AT-DP200 is a DVI to Mini DisplayPort converter designed to convert every Mac or PC computer's DVI or mini-DVI signal to a digital signal over a Mini DisplayPort connector, which is currently used on the Apple 24'' Display. The AT-DP200 allows users to extend their desktop to an Apple 24" (or similar DisplayPort display). Users can use the connected monitor as their main display or extend their desktop using it in addition to their laptop's screen. The Atlona DVI to Mini-Display Port Converter is compatible with all Apple and PC Computers which have a DVI or Mini-DVI connections. The new DP200 is featured with Attached DVI cable and USB Power source. There is no more need for an external Power supply.

How is our converter different from others:

AT-DP200 is HDCP Compliant, which means that you can play copy protected material through our converter

Apple 24" Compatible

Power Over USB, no external power supply needed

True pixel to pixel signal

Pro Mac Compatible, works with all pro applications such as Final Cut Pro

Our converter is only hardware based, therefore will never have any issues with new operating systems or if Apple updates the current operating system

The AT-DP200 was tested against every Apple DVI based computer by our engineers and Apple engineers

Our converter will not change any video settings or process video, therefore the quality will be identical to if the computer would be connected to the display without the converter

We don't change frame rate or refresh rate and we don`t scale video, therefore there would not be any delays or video artifacts

Our Converter was tested for over 6 month before it had been released, we created over 20 prototypes based on different chip-sets till we made it perfect

Features:

  • Compatible with All Mac and PC computers with DVI output
  • Supports High Resolutions up to 1920x1200 on Apple 24"
  • HDCP Compatible
  • True pixel to pixel signal
  • Full EDID management allows storing EDID information on the converter to make sure there is always a connection in between the computer and display
  • Re-Clocking technology will insure that signal stays the same quality as it was before entering the converter
  • Video Pass-Through, no scaling (EDID and HDCP compliant)
  • Power Over USB, no power supply is required
  • Attached DVI cable
  • Technical Specifications:
  • Input: DVI male (7-inch cable attached to the DP200) and USB Cable (7-inch cable attached to DP200)
  • Output: Mini Display Port female
  • Resolutions: all resolutions up to 1920x1200 (It is Important to select one of the resolutions that display is capable of displaying, refer to your display's users manual)
  • Power Supply: 5V/2.6A DC (110/220v)
  • Dimensions: 4.4(W) x 2.5(D) x 1(H) - inch
  • Weight: 0.5LB
  • Gross Weight: 1LB

Options:

  • DVI Cable
  • Mini DP cable
