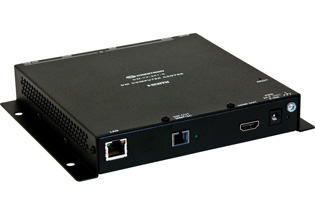

CRESTRON DM computer Center HDMI DM-TX-201-S
Description:
The DM-TX-201-S is a DM 8G® Fiber transmitter and switcher that provides a simple interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. Thin and compact, the DM-TX-201-S is ideal for use at a lectern, conference table, or any remote location in a boardroom, classroom, auditorium, or residence. It connects to the head end or display location via a single multimode fiber strand, providing HDMI®, VGA, and analog audio inputs, plus an Ethernet port and USB HID device port for a total connectivity solution.
Features:
- DigitalMedia 8G™ Fiber transmitter and multimedia interface
- Built-in 2x1 AV switcher with auto-switching and analog audio-breakaway
- QuickSwitch HD® technology achieves fast, reliable switching
- DM 8G® Fiber output supports up to 1000 ft (300 m) cable length[1]
- Connects to a DM® switcher or receiver over one multimode fiber strand[1]
- Provides HDMI® and RGB/component video inputs[3]
- Also supports DVI and DisplayPort Multimode sources[2]
- Handles HD video with HDCP
- Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio
- Includes mini-TRS stereo analog audio input
- Includes a local HDMI monitor output
- Detects and reports detailed video and audio input information
- Performs automatic AV signal format management via EDID
- Includes USB HID device port for connection to a computer
- Provides a 10/100 Ethernet connection
- Enables device control via CEC and Ethernet
- Allows quick, easy setup and diagnostics
- Low-profile surface-mount design
- Includes external universal power pack
