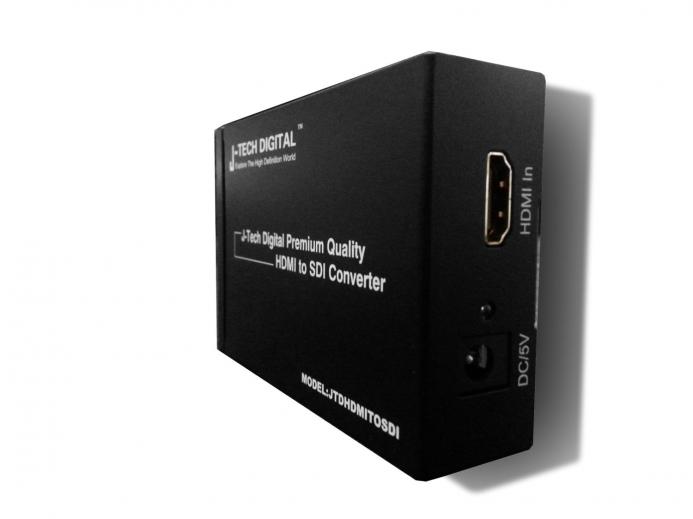

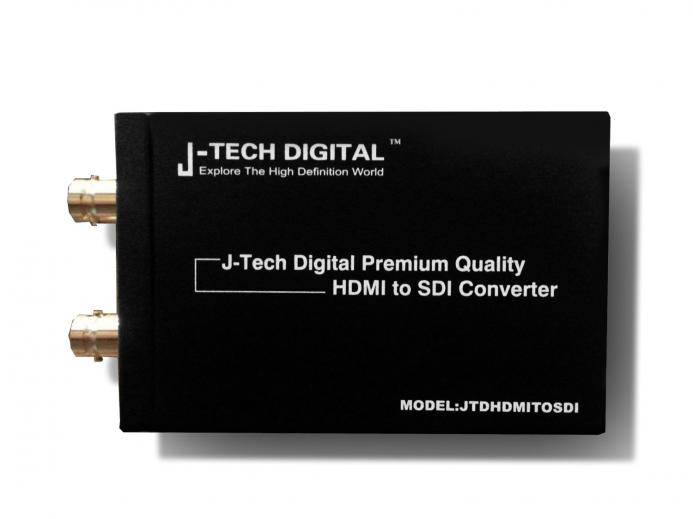

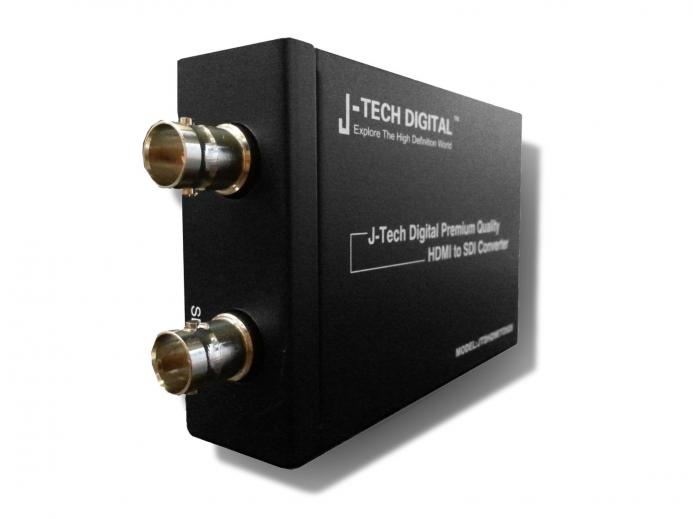

HDMI to SDI Converter J-Tech Digital


Convert HDMI signal to a broadcast quality SD-SDI | HD-SDI | 3G-SDI signal

Support HDMI Input Formats: 480i/P NTSC, 525i, or 625i PAL, 720P, 1080i/P @ 50Hz or 60Hz; Support 1080P @ 24Hz, 25Hz, 30Hz, 50Hz and 60Hz

SDI Output Resolution: 480i@60Hz, 576i@50Hz, 720P@50Hz & 60Hz, 1080i@60Hz, 1080P @ 24Hz, 25Hz, 30Hz, 50Hz and 60Hz

Dual SDI Output Port; SDI Format: SD-SDI, HD-SDI and 3G-SDI; Impedance: 75ohm; Supports HDCP specification and HDMI V1.3 specification

The SDI outputs support long coaxial cable. SD mode 1300 ft, HD mode 650 ft, 3G mode 300 ft. (cable is RG6 or equivalent products)
