Headset Head Wireless Mic Sennheiser XS

Description:

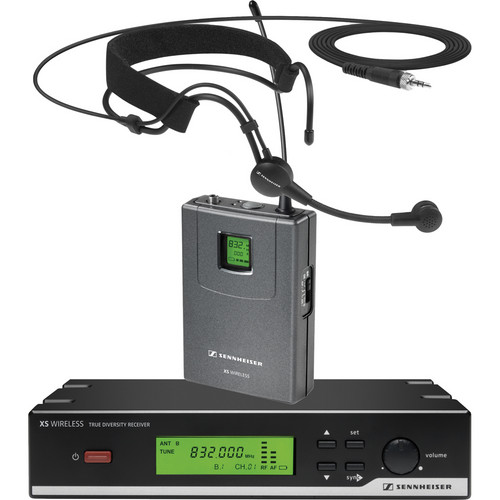

he Sennheiser XSW 52 Headmic Set Wireless Headworn Microphone System delivers Sennheiser sound quality and performance in an affordable, easy to use package aimed at presentations, instruction and more. The XSW 52 Headmic Set features a true diversity receiver and bodypack transmitter with an ME3 cardioid headset microphone for hands-free speech capturing.

The system operates on the 24MHz UHF frequency band and features 960 tunable frequencies, 8 frequency banks and 12 coordinated channels per bank. True diversity reception greatly minimizes noise, interference and artifacts. Both the transmitter and receiver are capable of remote channel sync, and the transmitter will operate for up to 10 hours on 2 AA batteries.

True Diversity reception for worry-free operation

24MHz switching bandwidth

960 available frequencies, tunable in 25kHz steps

8 frequency banks containing 12 coordinated channels each

Powerful scan function identifies available channels within a bank

Component synchronization at a distance with new "Remote Channel" sync

Up to 10 hours of operation with (2) AA batteries

Up to 250 feet of transmission range

Illuminated audio mute button on transmitters

Balanced (XLR) and unbalanced (1/4") outpu

Features:

  • Receiver True diversity
  • Modulation Wideband FM
  • Pilot Tone 32.768kHz
  • Sensitivity (at peak deviation) < 3 V at 52dBarms S/N
  • Frequency Range 614 - 638MHz
  • Switching Bandwidth 24MHz
  • Adjacent Channel Crosstalk ? 60dB
  • Intermodulation Distortion Intermodulation rejection ? 50dB
  • Frequencies 960, tunable in 25kHz steps
  • Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
  • Blocking ? 65dB
  • Frequency Response 60Hz - 16kHz
  • Signal-to-Noise Ratio ? 103dBa
  • THD ? 1%
  • Temperature 32 to 104 F (0 to +40 C)
  • Antenna Inputs 2 BNC connectors, 50 ?
  • Output Voltage XLR (balanced): +14dBu;" (unbalanced): +8dBu
  • (at peak dev., 1kHz AF)
  • Power Supply 12VDC nom. / 300mA
  • Dimensions 13.39 x 13.58 x 3.35" (34.01 x 34.49 x 8.50cm)
  • Weight 3.59lb (1.62kg)
