Conveter: High to Low Impedance converter Direct Box Rapco db100 Low Z ouput

Rapco DB 100 direct Box


The DB100 is a passive direct box that allows you to take a Hi-Z instrument and turn it in to a Lo-Z line out. A special jack for ground lift eliminates 60 cycle hum. With its heavy duty steel box and high performance transformer, its no wonder the DB100 is one of the best selling direct boxes on the market today. The DB100 is made with Rapco's DBT Transformer which is wired in-house to assure the highest level of quality.


  • Ground lift eliminates 60 cycle hum
  • Heavy duty steel box
  • High performance Rapco DBT transformer
  • High quality wiring


  • Input Impedance: Greater than 1000 ohm @ 1kHz (150 ohm Nominal)
  • Maximum Input Level: 0 dBV @ 20 Hz +2 @ 30 Hz +4 @ 50 Hz (for 1% THD)
  • Input Connectors: Two Parallel and one Ground Lift In 1/4"

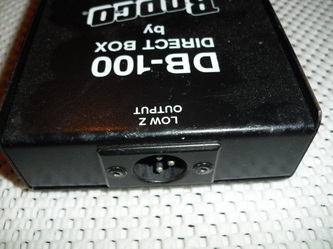

  • Output Connector: 3-pin male XLR
  • Output Impedance: > 200 ohm @ 1kHz
  • Distortion (THD): > .05% @ -40 dBV output
  • Frequency Response: 20Hz to 20kHz, +/-5dB @ -20 dBV output
