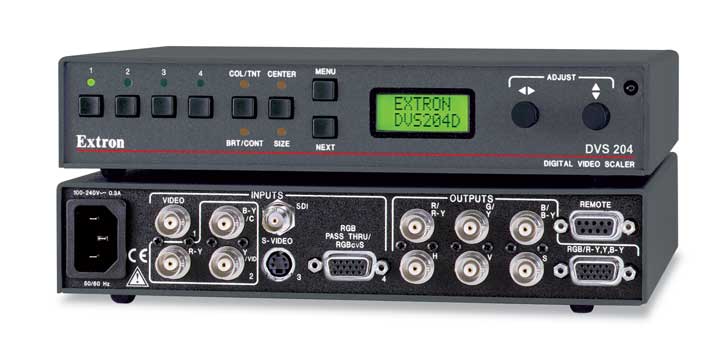

Extron DVS 204 Digital Video Scaler

Description:

High performance digital video scaler

Inputs: Composite on BNC; composite, S-video, or component video on BNCs; S-video on 4-pin mini DIN; optional SDI configurable on any of the inputs

RGB pass-through input: one 15-pin HD

Outputs: RGB or component video on 15-pin HD or BNCs

Scales composite video, S-video, component video, and optional SDI with RGBHV pass-through

59 output rates from 640x480 to 1400x1050, including HDTV 1080p/60

Features:

  • 1 (RGBHV, RGBS, RGsB) pass-through, RGBS, RGBcvS
  • 1 composite video, S-video, component video (Y, R-Y, B-Y)
  • 1 S-video, 1 SDI (optional, DVS 204D only)
  • 1 composite video
  • (1) 15-pin HD female................. RGB pass-through, RGBS, RGBcvS
  • 3 BNC female........................... component video, S-video, composite video
  • 1 BNC female........................... SDI (DVS 204D, DVS 204D 12 V only)
  • (1) 4-pin mini DIN fe
  • 1 Vp-p for Y of component video and S-video, and for composite video
  • 0.7 Vp-p for RGB and for R-Y and B-Y of component video
  • 0.3 Vp-p for C of S-video
  • Minimum/maximum levels Analog: 0.0 V to 1.0 Vp-p with no offset
  • Impedance 75 ohms
  • Horizontal frequency NTSC 3.58, NTSC 4.43, PAL, SECAM
  • Vertical frequency NTSC 3.58, NTSC 4.43, PAL, SECAM
  • Resolution range NTSC 3.58, NTSC 4.43, PAL, SECAM
  • Return loss <-25 dB @ 5 MHz
  • DC offset (max. allowable) 1.5 V
  • Decoder 9 bit digital
  • Digital sampling 24 bit, 8 bits per color; 13.5 MHz standard
  • Colors 16.78 million
