Video Switchers, Scalers and Converters

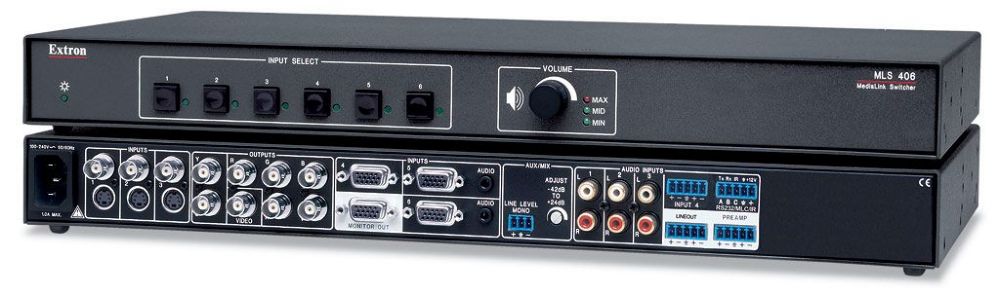

Extron MLS 406 Media Link Switcher


The Extron MLS 406 MediaLink


  • Video inputs: Three female BNC connectors paired with three 4-pin mini DIN connectors for composite video or S-video; three female 15-pin HD connectors for computer-video, composite video, or S-video
  • Audio inputs: Three pairs of female RCA connectors, two female 3.5 mm stereo mini jacks, and one captive screw connector
  • Video outputs: Dual RGB output on five female BNC connectors and one female 15-pin HD connector, composite on one female BNC connector, and S-Video on two female BNC connectors
  • Audio outputs: Captive screw connectors
  • 280 MHz (-3 dB) RGB video bandwidth
